Technical details LLS75-Cont


ALU+ limited

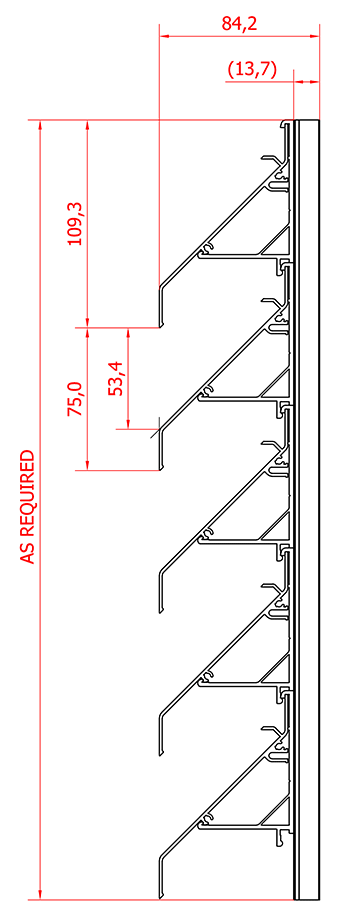

  • Continuous louvre system with a pitch of 75mm.
  • All profiles are manufactured from aluminium extrusions.
  • Z-shaped louvre blades.
  • Can be fitted to an existing construction and is supported by vertical mullions.


  • Aluminium - all parts (mullions, clips and blades) are manufactured from aluminium extrusions Al Mg Si 0,5 (6063 T6)
  • Profile thickness: minimum 1.5mm.

Finish :

  • Natural anodised15-22micron
  • Polyester powder coated - BS6496
  • Powder coating in any RAL or B/S colour available
  • Thickness of powder coating 40 micron minimum

Protection :

  • Fibre glass insect mesh fitted as standard.
  • Other meshes available as an option


  • Louvre consists of 2 upright mullions which hold the clips, an extra reinforcement mullion is added every 1000mm
  • Aluminium blade profiles are clipped into aluminium blade support clips.
  • The blade height is 107mm, the blade pitch is 75mm & the visual free area is 71%.


Custom made by our skilled Craftsmen to your exact requirements
