Technical details MLS50-Cont


ALU+ limited


  • Continuous louvre system with a pitch of 50mm.
  • All profiles are manufactured from aluminium extrusions.
  • Z-shaped louvre blades.
  • Can be fitted to an existing construction and is supported by vertical mullions.


  • Aluminium - all parts (mullions, clips and blades) are manufactured from aluminium extrusions Al Mg Si 0,5 (6063 T6)
  • Profile thickness: minimum 1.3mm.

Finish :

  • Natural anodised15-22micron
  • Polyester powder coated - BS6496
  • Powder coating in any RAL or B/S colour available
  • Thickness of powder coating 40 micron minimum

Protection :

  • Fibre glass insect mesh fitted as standard.
  • Other meshes available as an option
  • A reinforcement profile carrying extra blade supports is fitted when the width of the louvre is > 850mm.


  • Aluminium blade profiles are clipped into aluminium blade support clips.

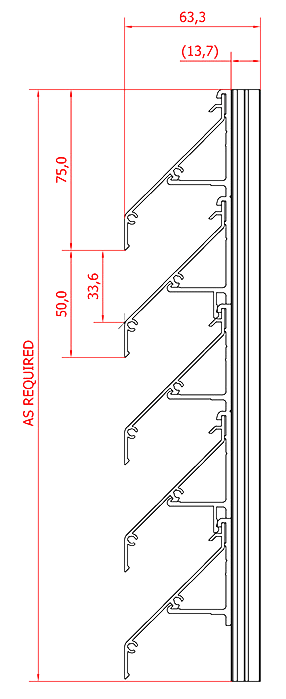

  • The blade height is 73mm, the blade pitch is 50mm & the visual free area is 66%.


Custom made by our skilled Craftsmen to your exact requirements
