Manufacturer

ALU+ limited

Type

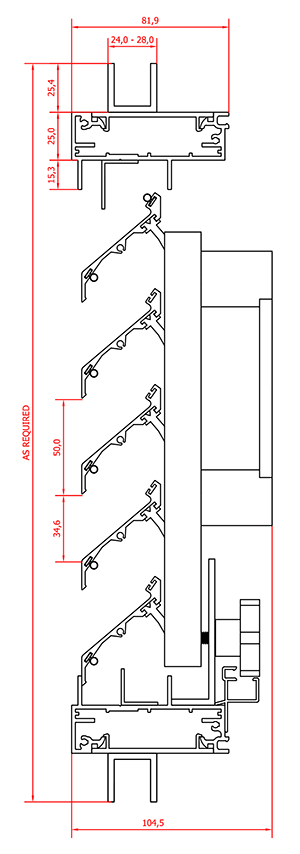

• Adjustable Louvre System (ALS50) with 24mm Glazing and a blade pitch of 50mm.
• Z-shaped louvre blades

Material

• All parts are manufactured from aluminium extrusions Al Mg Si 0,5 (6063 T6)
• Blade profile thickness: 1.35mm.
• Frame profile thickness : 2mm

Finish :

• Natural anodised 15-22micron
• Polyester powder coated - BS6496
• Powder coating in any RAL or B/S colour available
• Thickness of powder coating 40 micron minimum

Protection :

• Water drainage channel fitted to the rear of the louvre
• Fibre glass insect/bird mesh fitted as standard
• Stainless steel and gas/rodent meshes available as an option

Manufacture

Operation

• The louvre consists of a 24-28mm glazed in profile.
• The blade height is 58mm, depth is 40.2mm, & visual free area is 69%.
• Frame depth to fit 100.7mm.
• All blades fitted with suitable sealing gasket
• Max manufacturing size of 1200(W) x 2200mm (H)

• Louvres up to 1200 x 1200mm are manually operated with a lockable hand wheel. Louvres over this size:
• Come with hand operated winder or eyelet to receive telescopic crank handle.
• Electric Motor – Fully open and Fully closed positions
• Other controls available upon request

Assembly

Custom made by our skilled Craftsmen to your exact requirements
