Manufacturer

ALU+ limited

Type

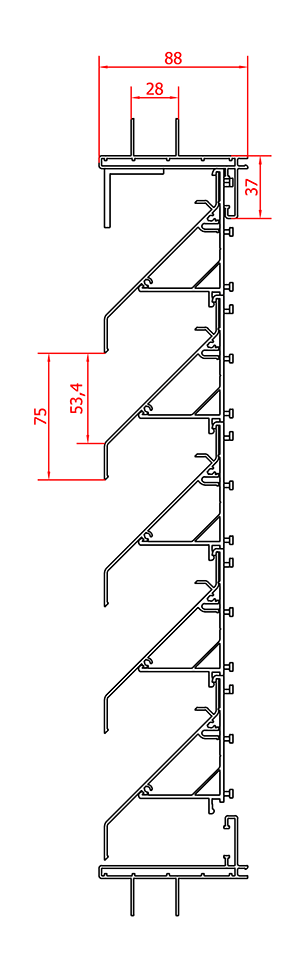

• Glazed-in louvre, with a pitch of 75mm.
• All profiles are manufactured from aluminium extrusions.
• Glazing thickness 28mm
• Z-shaped louvre blades

Material

• Aluminium - all parts (frame profile, clips and blades) are manufactured from aluminium extrusions Al Mg Si 0,5 (6063 T6)
• Profile thickness: minimum 1.5mm.

Finish :

• Natural anodised15-22micron
• Polyester powder coated - BS6496
• Powder coating in any RAL or B/S colour available
• Thickness of powder coating 40 micron minimum

Protection :

• Fibre glass insect mesh fitted as standard.
• Other meshes available as an option
• A reinforcement profile carrying extra blade supports is fitted when the width of the louvre is > 1000mm.
• Aluminium water drainage profile can be fitted at the bottom of the louvre to ensure better water tightness as an e/o

Manufacture

• The glazed-in louvre consists of a 22mm rebate.
• The aluminium louvre clips are fitted into the frame profile. The aluminium louvre blades are clipped into the louvre clips.
• The blade height is 107mm & visual free area is 71%.
• Depth to fit 88mm

Assembly

Custom made by our skilled Craftsmen to your exact requirements
